OUR PRODUCTS
"We provide reliable solutions for industrial and medical gases. Our products are manufactured based on the principles of quality, safety, and reliability."
Equipment type Gas flow regulator*
Control scheme Single-stage
Type of gas to be reduced Argon/Carbon dioxide
Max. inlet pressure, MPa/bar (kgf/cm2) 20/200
Max. working pressure, MPa/bar (kgf/cm2) 0.45/4.5
Gas flow, l/min 3-30
Connector sizes:
Inlet connection G3/4" (union nut)
Outlet connection G1/4" (male thread)
Manometer size (diameter), mm 63
Metering valve (shut-off valve) Yes
Body material Brass
Enclosure ATEX coating Yes
Overall dimensions, mm 188x215x61
Weight 1,22 kg
Complete set:
passport; regulator; union nut G1/4"; nipple dia.6,3mm; gasket on the inlet 2pcs
Package dimensions, mm 287x230x69
Package weight, kg 1.46
Part number ARV0059

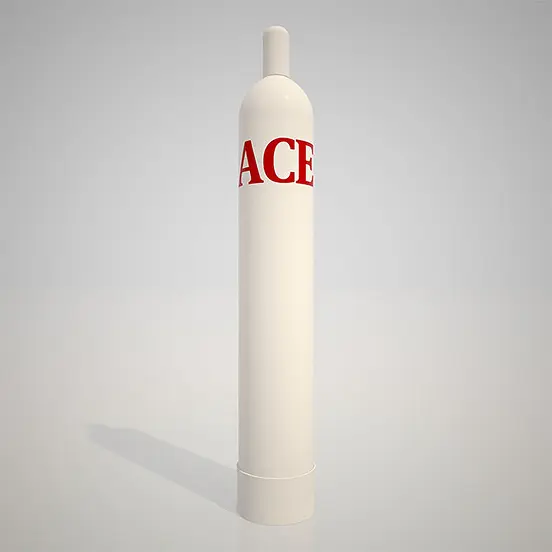

Acetylene (systematic name: ethyne) is a chemical compound with the formula C₂H₂.
Gas type: Acetylene
Max working pressure: 25 bar
Outlet pressure: 1,5 bar
Max flow rate: 14 m³/h
Inlet connection: G 5/8 LH (BS4)
Outlet connection: G 3/8 LH
Material: brass
Number of pressure gauges: 2 pcs
Part Number 0783640
Gas type: Acetylene
Max working pressure: 25 bar
Outlet pressure: 1,5 bar
Max flow rate: 5 m³/h
Inlet connection: collar
Outlet connection: G3/8LH
Material: brass
Number of pressure gauges: 2 pcs
Part Number 0781324
High-performance regulator suitable for all standard technical gas applications
Safe design according to ISO 2503
Good gauge protection with a back cover that prevents damage and contamination
Long service life with savings in terms of service, spare parts and total replacement
Sealed control mechanism ensuring accuracy and stability of parameters
Easy operation thanks to ergonomic layout
Pressure gauges with ISO 5171 accuracy, high-contrast pointer and scales in three of the most widely used measurement units for a better control of the gas pressure
Type of gas:argon, carbon dioxide
Features:safety valve, manometer
Minimal operating temperature -20 °C
Maximum operating temperature 60 °C
body material:brass
Single stage
Process connection inlet: G3/4"; outlet: G1/4"
Weight: 1,7 kg;
Package dimensions: 290x220x70 mm;
Gas capacity: up to 100 m3/h;
Number of pressure gauges 2 pcs
Inlet pressure 200 bar
Output pressure 30 bar
Part Number ProControl PC0780647
Gas type: Ar/CO2
Inlet pressure: 230bar
Gas Flow: 0-30 l/min
Inlet connection: 3/4"
Material: brass
Part Number 0870478
Gas type: AR/CO2
Inlet pressure: 200bar
Gas Flow: 3-30 l/min
Inlet connection: 3/4"
Outlet connection: 1/4"
Material: brass
Part Number ARV0059
Gas type: AR/CO2
Inlet pressure: 200bar
Gas Flow: 0-24 l/min (outlet 24bar)
Inlet connection: G3/4
Outlet connection: G1/4
Material: brass
Weight 1.15 kgs
Dimensions(without package)
190х250х65 mm
Part Number 0870459
Gas type: AR/CO2
Inlet pressure: 200bar,
Gas Flow: 0-24 l/min
Inlet connection: 3/4"
Outlet connection: 3/8"
Material: brass
Part Number 0870460
Gas type: Ar/N/He
Inlet pressure: 230bar,
Outlet pressure: 100 bar
Inlet connection: G 5/8"RH Male side
Outlet connection: 860x1/14"
Material: brass
Part Number 0766028

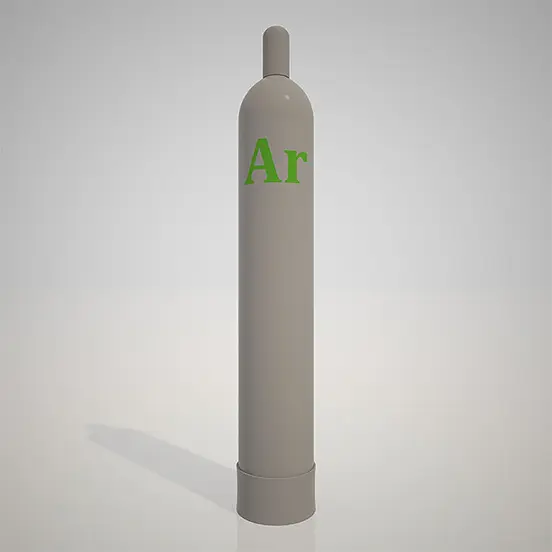

Argon is a chemical element with the symbol Ar and atomic number 18.

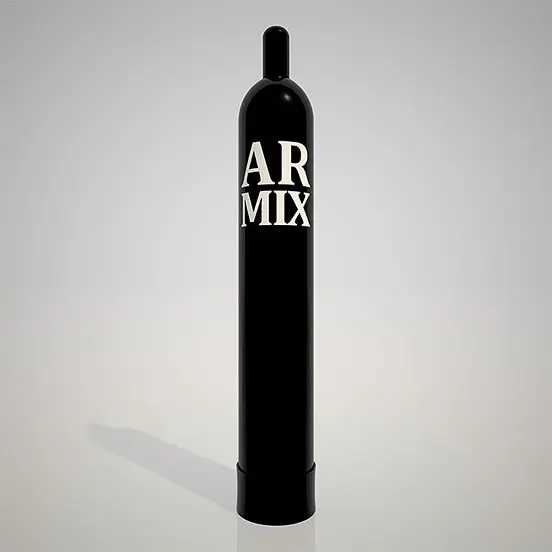

Argon-Carbon Dioxide C-50 (50% argon / 50% CO₂)

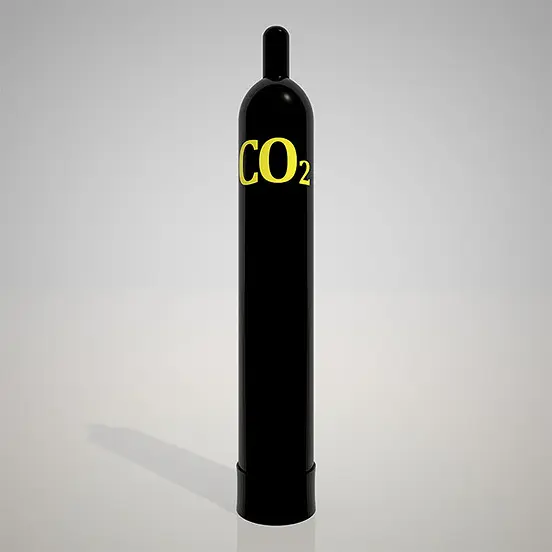

Carbon dioxide (chemical formula CO₂)
Gas type: Propane
Length: 530 mm
Thickness of the cut metal, mm: 3-300
Mouthpiece type - 459-P
Inlet connection, propane: G 3/8” LH (Left hand thread)
Inlet connection, oxygen: G 1/4” (Male thread)
Part Number 0767579
Gas type: Acetylene/Propane
Length: 535 mm
Thickness of the cut metal, mm:
Acetylene 0-300/ Propane 0-300
Inlet connection: M16x1.5 LH (left outer thread)
Inlet connection: M16x1.5 (outer thread)
Part Number 2278577
Gas type: Acetylene/Propane
Length: 535 mm / 800 mm/ 1000 mm
Thickness of the cut metal, mm:
Acetylene 3-300/ Propane 3-300
Part Number 2278588
Gas type: propane
Length: 520 mm
Thickness of the cut metal, mm: 2-300
Inlet connection, propane: G 3/8” LH
Inlet connection, oxygen: G 1/4”
Part Number 0767796
Gas type: Propane
Thickness of cut metal, mm: 3-50
Part Number 0768681
Gas type: Propane/Acetylene
Max working pressure: Acetylene 1.5 bar/ Propane 5 bar
Inlet connection: M16×1.5
Outlet connection: 6.3/10mm tube
Part Number E0080550
Gas type: Propane/Acetylene
Max working pressure: Acetylene 1.5 bar/ Propane 5 bar
Inlet connection: 6.3/10mm tube
Outlet connection: M16×1.5
Part Number E0080950
Gas type: A/ H/ C/ P/ M
A: Acetylene; H: Hydrogen; C: Coal; PM: Methane Propane
Working pressure:
A 1,5
H 3,5 bar
C 3,5 bar
P 5 bar
M 5 bar
Inlet connection: G3/8"LH F
Outlet connection: G3/8"LH M
Part Number 0764471
Gas type: Acetylene, Hydrogen, LPG (includes propane, butane and propylene), MAF/MAPP gas (Methylacetylene - allene fraction), Natural gas (methane)
Function: Check valve, Flame arrester, Temperature valve, Pressure valve
Max working pressure: 25 bar
Inlet connection: G3/8”LH;
Outlet connection: G3/8”LH;
Maximum working pressure, MPa/bar (kgf/cm2):
Ace: 1.5/0.15
Pr : 0.50/5.0
Part Number 0764456
Welding (0.5-10 mm) and cutting (3-50 mm)
The kit includes:
Handle X11 (length 195 mm);
Welding tips 6 pcs: 160mm/60°, 180mm/60°, 200mm/60°, 220mm/60°, 240mm/60°, 260mm/60°;
Cutting nozzle, lever (plug-in cutter) X11;
3pcs cutting mouthpieces: 3-8/8-20/20-50mm;
Key of the welder;
Cleaning needles;
Nut G1/4”;
Nut G3/8” LH (Left hand thread);
Non-return valve built into the BV 12 nipple - 3/8“ sleeve 6 mm dia.;
Non-return valve built into the BV 12 nipple - 3/8“ sleeve 9 mm dia.;
Plastic case suitcase;
Part Number 0763484

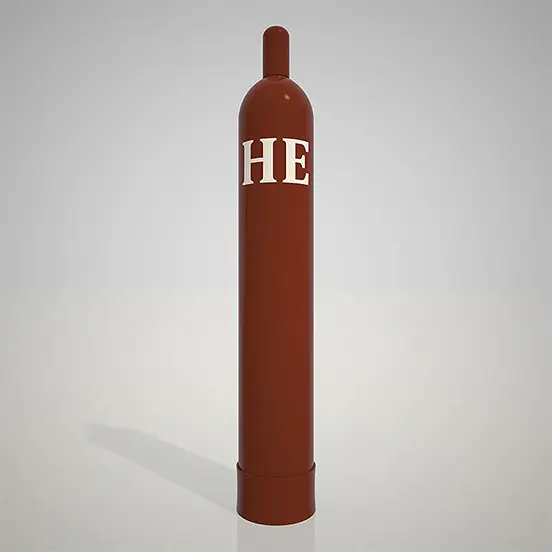

Helium is a chemical element with the symbol He and atomic number 2.
Gas type: Fuel gas
Application: Torch Shank
Connection: G3/8" LH
Part Number F28710007
Weight, kg 0.28
Inlet pressure, bar 4,5
Inlet connection DIN QC
Output connection 9/16" UNF
Dimensions, mm 32x160x60
Body material Brass
Max. gas flow rate, l/min 15
Working gas medical oxygen
Rotameter yes
Part Number 0730162
Gas type: Fuel gas
Application: Hose
Connection: 9 mm
Part Number F28710013

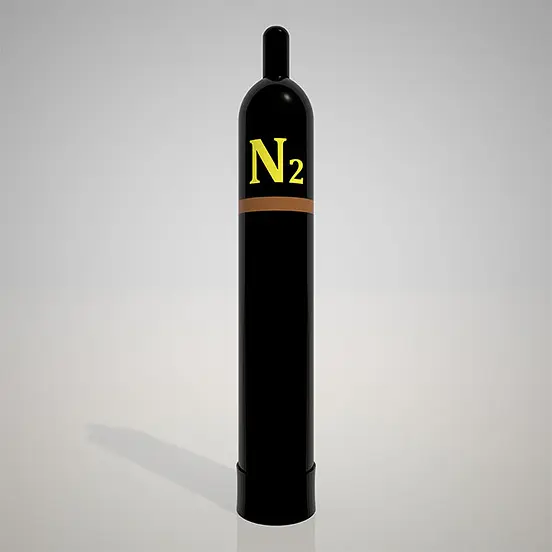

Nitrogen is a chemical element with the symbol N and atomic number seven.
Gas type: Nitrogen
Max working pressure: 300 bar
Outlet pressure: 50 bar
Inlet connection: W30x2
Outlet connection: G1/4“
Material: brass
Number of pressure gauges: 2 pcs
Part Number PC0783890
Gas type: Nitrogen/Argon/Helium/Hydrogen/Air
Max working pressure: 200 bar
Outlet pressure: 10 bar
Max flow rate: 30 m³/h
Inlet connection: G3/4
Outlet connection: G1/4
Material: brass
Number of pressure gauges: 2 pcs
Part Number 0870458
Gas type: Propane
Thickness of cut metal, mm: 10-25
Part Number 2421218
Gas type: Propane
Thickness of cut metal, mm: 75-125
Part Number 2421220
Gas type: Propane
Thickness of cut metal, mm: 225-300
Part Number 2421220

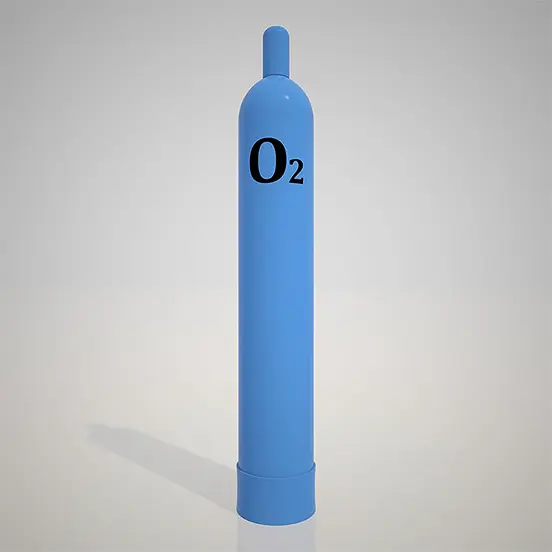

Oxygen is a chemical element with the symbol O and atomic number 8.
Gas type: Oxygen
Max working pressure: 25 bar
Inlet connection: G1/4" F
Outlet connection: G1/4" M
Part Number 0764469
Gas type: oxygen
Max working pressure: 200 bar
Outlet pressure: 10 bar
Max flow rate: 50 m³/h
Inlet connection: G3/4
Outlet connection: G1/4
Material: brass
Number of pressure gauges: 2 pcs
Part Number 0870456
Gas type: oxygen
Max working pressure: 300 bar
Outlet pressure: 10 bar
Max flow rate: 30 m³/h
Inlet connection: G5/8"RH M*
Outlet connection: G3/8"RH
Material: brass
Number of pressure gauges: 2 pcs
Part Number 0783976
Gas type: oxygen
Max working pressure: 300 bar
Outlet pressure: 20 bar
Max flow rate: 50 m³/h
Inlet connection: G5/8"RH M*
Outlet connection: G3/8"RH
Material: brass
Number of pressure gauges: 2 pcs
Part Number 0783977
Gas type: oxygen
Max working pressure: 300 bar
Outlet pressure: 4 bar
Inlet connection: G5/8"
Outlet connection: G3/8"
Material: brass
Number of pressure gauges: 2 pcs
Part Number 0783650

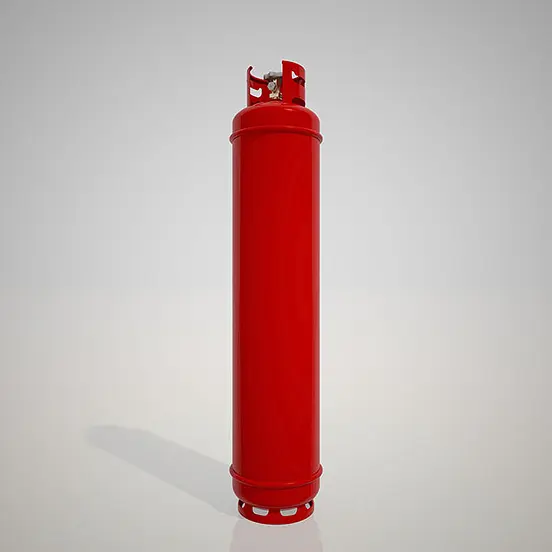

Propane (molecular formula C₃H₈) is an alkane with three carbon atoms.
Gas type: Propane
Mouthpieces G4, G5
Nipple diameter working fuel: 6/9
Max thickness of welded metal: 15 mm
Connecting thread: М16х1.5
Number of replacement tips included: 2 pcs
Oxygen nipple diameter: 6/9
Part Number 2277017
Gas type: propane
Inlet pressure: 25 bar
Max flow rate: 5 m³/h
Inlet connection: W21.8x1/14LH
Material: brass
Number of pressure gauges: 1 piece
Outlet connection: G3/8LH; 6.3 mm; 9 mm
Part Number PC0780698
Gas type: propane
Inlet pressure: 25 bar
Max working pressure: 0.4 MPa
Max flow rate: 5 m³/h
Inlet connection: W21.8x1/14LH
Material: brass
Number of pressure gauges: 2 pcs
Part Number 0870461
Gas type: Oxygen
Application: Regulator
Installation location: Reducer
Input connection: Union nut M16x1.5
Output connection: Socket EN561 diameter oxygen
Part Number F28710013
Gas type: Helium
Max working pressure: 200 bar
Outlet pressure: 0,6 bar
Max flow rate: 2 m³/h
Inlet connection: W21,8x1/14"
Outlet connection: G3/8”
Material: brass
Number of pressure gauges: 2 pcs
Part Number 078132
Gas type: oxygen
Max working pressure: 200 bar
Outlet pressure: 4 bar
Max flow rate: 12 m³/h
Inlet connection: W21,8x1/14”
Outlet connection: G1/4"
Material: brass
Number of pressure gauges: 2 pcs
Part Number ARV 0520
Maximum number of safety features defined by ISO 5175-1
High visibility trip/reset lever coupled with quick acting reset even when pressurised
Angled inlet to minimise hose damage
100% production flame tested for Flashback resistance
Inspection dates can be marked on product for easy reference
FUNCTIONS
Flame arresting element FA
Non return valve NV
Pressure sensitive cut off valve PV
Temperature sensitive cut off valve TV
Reset mechanism to clearly advise unit activation RM
( https://youtu.be/dSvUyWfDnIY )
Oxygen Working pressure 10 bar
Inlet connection G1/4” F
Outlet connection G1/4” M
Part Number 0764458
Gas type: Acetylene
Color: Red
Inner diameter, mm: 6.3
Maximum working pressure, MPa (bar): 20
Standards: ISO 3821
Gas type: Oxygen Acetylene or Propane
Color: Blue & Red
Inner diameter, mm: 9.0
Maximum working pressure, MPa (bar): 20 & 6.3
Part Number 2931006
Gas type: Oxygen, Acetylene or Propane
Color: Black
Inner diameter, mm: 9.0
Maximum working pressure, MPa (bar): 20
Part Number 2921031
Gas type: Acetylene or Propane
Color: Red
Inner diameter, mm: 9.0
Maximum working pressure, MPa (bar): 6.3
Part Number 22921007
Gas type: Oxygen & Propane
Width: 62 cm
Length: 150 cm
Gas type: Oxygen
Width: 40 cm
Length: 150 cm
Yıldız 50232 Basınç Düşürücü
Gaz Çıkış Basıncı: 0-100 bar
Gaz Giriş Basıncı: 0-230 bar
Gaz Çıkış Bağlantısı: G 3/8″ Tesisat
Gaz Giriş Bağlantısı: G 5/8″
Gaz Cinsi: Azot
Redüksiyon Bağlantıı: W21,80×1/14
Part number 50232
Gaz Cinsi: Azot
Gaz Çıkış Basıncı: 0-50 bar
Gaz Giriş Basıncı: 0-230 bar
Gaz Çıkış Bağlantısı: G 3/8”
Gaz Giriş Bağlantısı: G 5/8" Dış
Gaz Çıkış Debisi (Qmax): 150 m3 /h
Part number 50231
Стрелка Наверх
You can send your positive/negative feedback on our products and services to the following email: [email protected]

© REALGAZ - All rights reserved.
Site developed by AYVUS.COM
Back to content
